DRAGS

MTN Trail Groomer:

  • Cutting edge will move back to clear rocks and
    stumps, up to 9'' of clearance.
  • MTN drags are operator friendly and
    of the highest quality in the industry.


Click here to see our 4x8 Drags!

What do our clients have to say?



MTN Planer Features:

  • Extra heavy main frame for added strength.
  • Nose cone bumper.
  • Adjustable double spring on each cutting edge.
  • Replaceable cutting edges.
  • Tubular steel for added strength.
  • Extra high pan for easy back up.
  • Reflective stripping.
  • Breakaway hydraulic quick couplers.
  • Side pans allow more snow in the frame.
  • Adjustable pan skags.
  • Frame hitch with pintal ring.
  • Grease fitting on all movable components.
  • Large flotation tire.
  • Double cylinder for lifting wheels.


Model Cutting Edge Size Application

M-Series 4 ' x 8' 4 Cutting Edges Alpine Scandic -VK 540
M-Series 5' x 8 4 Cutting Edges Alpine Scandic -VK 540 and Side by Sides 4 Wheelers

T-Series 6.5' x 10' 4 Cutting Edges Alpine Scandic -VK 540 and Side by Sides 4 Wheelers

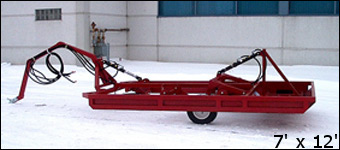

T-Series 7' x 12' 4 Cutting Edges Alpine Scandic -VK 540 and Side by Sides 4 Wheelers

N-Series 8'4'' x 16' 6 Cutting Edges* Tucker, BR 160/180, Husky, Trail Bully, LMC 1800

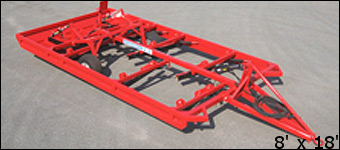

N-Series 8'4'' x 18' 7 Cutting Edges* Tucker, BR 160/180, Husky, Trail Bully, LMC 1800

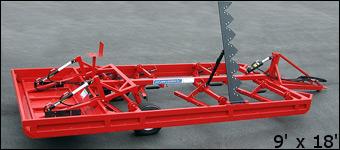

N-Series 9' x 18' 7 Cutting Edges* Tucker, BR 160/180, Husky, Trail Bully, LMC 1800

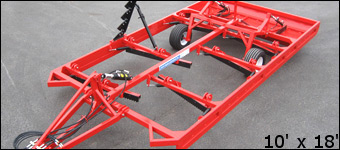

MTN-Series 10' x 18' 7 Cutting Edges* PB 200 to PB 300, BR 275/350/400 and All Farm Tractors
MTN-Series 11' x 20' 7 Cutting Edges** PB 200 to PB 300, BR 275/350/400 and All Farm Tractors
MTN-Series 12' x 20' 7 Cutting Edges** PB 200 to PB 300, BR 275/350/400 and All Farm Tractors

* Made of 1/4" Tube Thickness
** Made of 5/16" Tube Thickness


This video shows how a drag distributes snow.


Also available, Cross country track setter!

Call us for a demonstration 1-877-MTN-SNOW
